Description

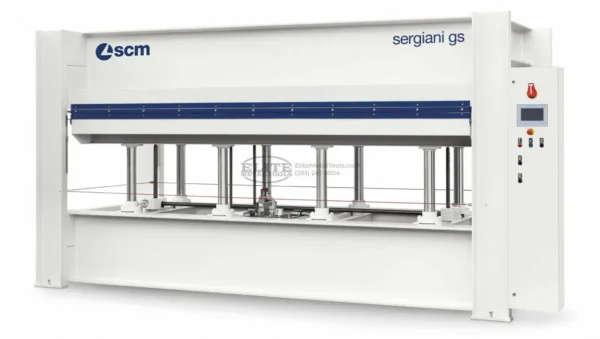

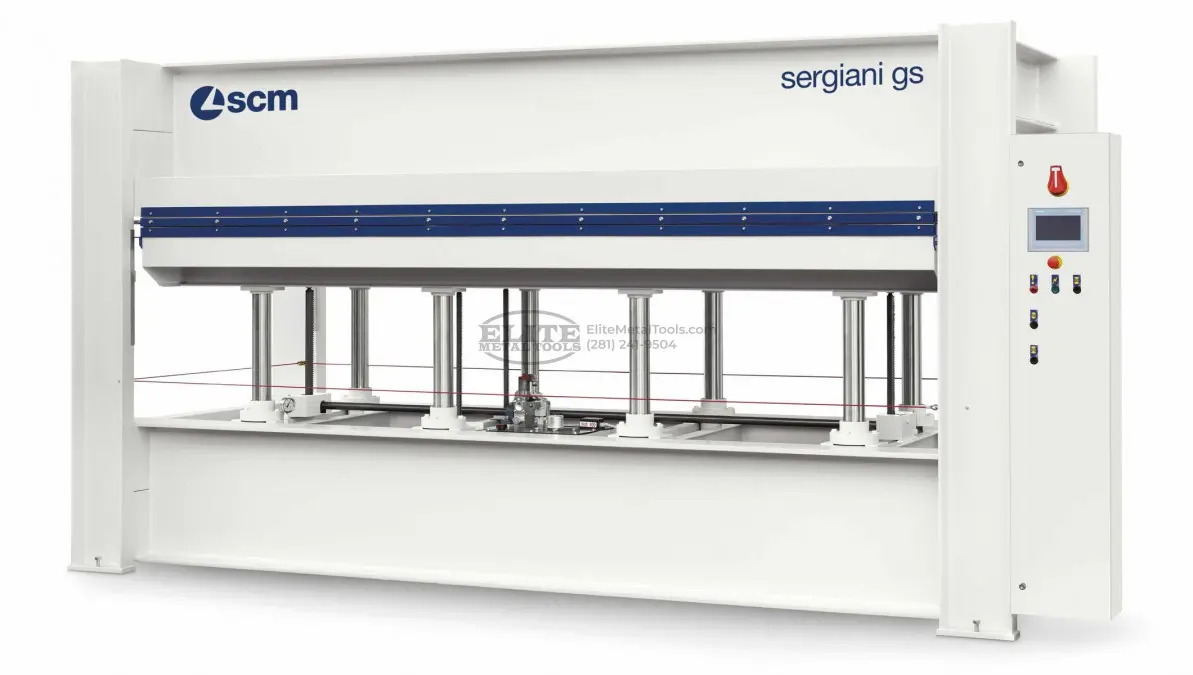

Press with electronic control and manual loading/unloading: the unique solutions and the utmost precision of the mechanical machining operations ensure high surface and gluing quality of the product being pressed. Highly versatile, it can be used for veneered panels, hollow-core doors and multi-layered panels. Available in numerous versions that can be configured with a vast range of accessories to meet all types of pressing requirements.
Features
- Structure quality – The sturdy structure has been engineered with a high safety coefficient to guarantee the highest level of resistance and rigidity in each processing phase.

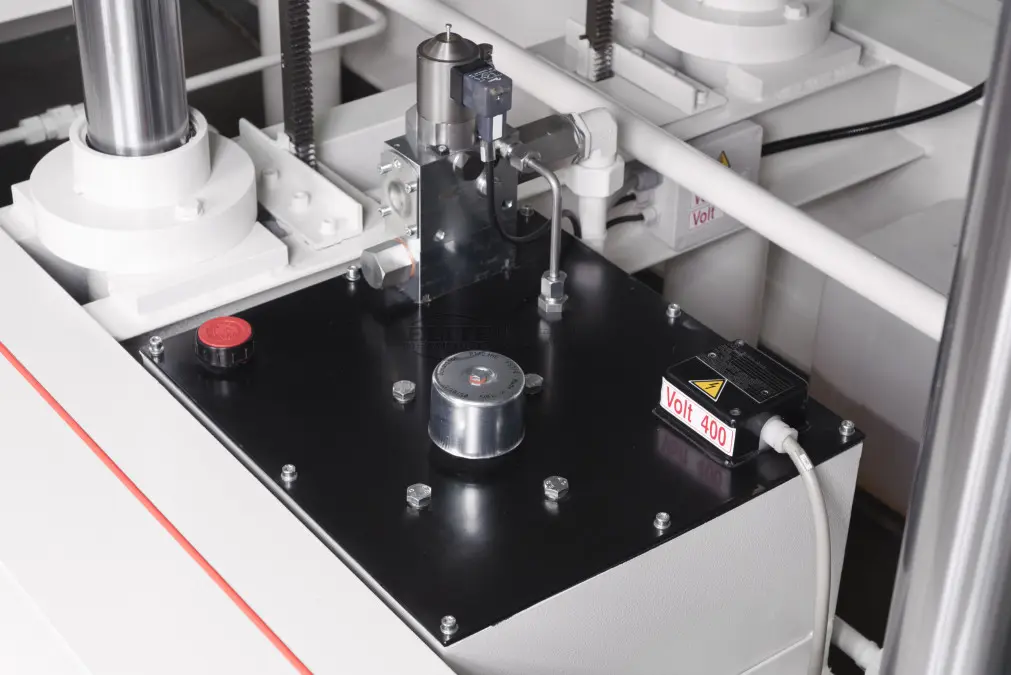

- Hydraulic cylinders – The steel rod is chromed with a thick layer and rectified, all gaskets are high resistance to guarantee long lifetime and perfect seal.
- Control panel with siemens color touch screen – The new control panel is equipped with a software that allows to automatically calculate the hydraulic pressure, manage the heating system, carry out a complete diagnostic, program and save all working parameters.
- Assembled platens – Composed by:
- Aluminium sheet for a perfect surface finish and heating distribution;
- Calibrated steel sheet;
- Steel heating coil for heating fluid circulation;
- Tubulars to guarantee the mechanical resistance uniformity of the platen.
Specifications
- Number of Cylinders: 6 cylinders
- Thrust: 120 ton
- Assembled Platens: 3100 x 1600 mm (122” x 63”)
- Voltage: 480V
- Frequency: 60 hz
Assembled Platen Version Specs
- Max. working temperature 120°C
- Max. specific working pressure 5 kg/cm2
- Heating fluid pressure 0,5 bar
