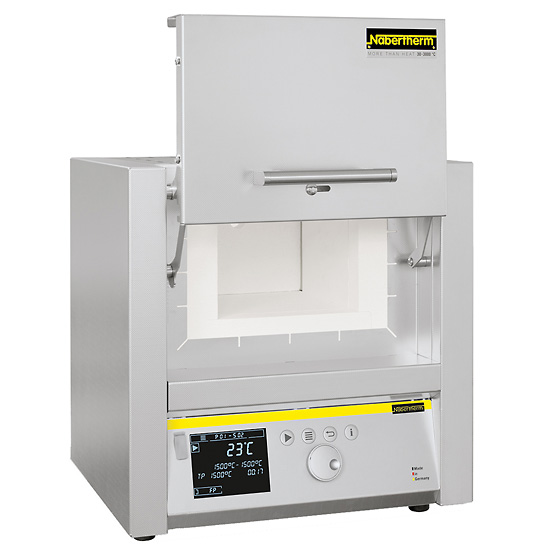

Nabertherm L-401H1TN Muffle Furnace, 2440 cu.in., 240 VAC – L-401H1TN
Features a digital controller with a clear blue-white LCD showing operating parameters. Vertical lift door provides full access to the chamber while keeping the hot surface facing away from the user. Solid-state relays provide quiet operation.
Features:
- Easy-to-replace heating elements are protected from fumes and splashing, providing greater efficiency and longer life
- Rust-free stainless steel exterior and dual shell housing for low external temperatures
- Adjustable air inlet integrated into door
- Hot air is expelled through exhaust outlet in the rear wall of the furnace
Included:
- Door-mounted adjustable air-inlet port and 6 1⁄2-ft (2-m) power cord with standard NEMA plug
Specifications:
| Product Type | Furnace |
| Maximum temperature (º C) | 1100 |
| Maximum temperature (º F) | 2012 |
| Chamber size (cu ft) | 1.41 |
| Chamber size (Liters) | 40 |
| Chamber size (” H) | 9-7/8 |
| Chamber size (” D) | 19-5/16 |
| Temp control accuracy | ± 1° C |
| Rise time | 95 minutes |
| Heater wattage (watts) | 6000 |
| CE Compliance | Yes |
| Overall dimensions (” W) | 23-5/8 |
| Overall dimensions (” H) | 25-1/2 |
| Overall dimensions (” D) | 31 |
| Shipping weight (lbs) | 209 |
| Shipping weight (kg) | 95 |
| Model | L-401H1TN |
| Brand | Nabertherm |
| Power (VAC) | 240 |
| Power (Hz) | 50/60 |
| Manufacturer number | L-401H1TN |
