Description

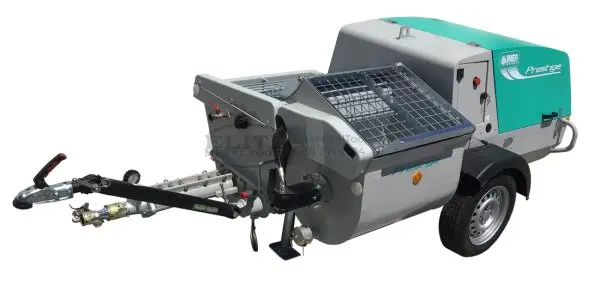

The Silent 300 Prestige is a diesel-powered multi-purpose pump and spray machine with a built-in 6.3 cubic foot hydraulic mixer and onboard compressor for spraying. The military spec control panel integrates all these functions in one location to allow operators to quickly and easily learn to operate the pump. Known for its versatility, the Prestige is designed to use different rotor/stator combinations for pumping a variety of materials – including up to 3/8” aggregate.
Standard Equipment
- 24 HP Yanmar diesel engine
- 14 CF/m compressor
- 2L6 screw pump
- 33’ material hose Ø 35 mm (1-3/8”)
- 50MM to 35mm material hose reducer
- 2 clean-out sponges
- High shear hydraulic mixer
- Variable speed hydraulic pump
- Programmable mixer timer
- Metal accessory box
- Tow package for highway use
Features
- Safety sensor system stops the mixing paddles if the grid is opened
- High capacity hopper (7 CF), run hard batch after batch
- Comes standard with adjustable 2L6 rotor / stator. Other stator options available
- Articulating towbar ensures that the pump is towed level and safe
- Diesel over hydraulic drive system
- The hydraulic mixer with hydraulic dump shears the mix fast
Specifications
- Motor power rate ISO 3046/1-IFN: 24 HP
- Compressor flow rate: 14 cf/m
- Max pumpable aggregate size IM25L: 3/8″
- Vairable flow rate 60.12: 12 cu ft/ hr
- Variable flow rate IM25L: 4 cu ft/hr
- Vairable flow rate 2L6: 3 cu ft/hr
- Max pressure 2L6: 580 PSI
- Hopper capacity: 7 cu ft
- Mixer capacity: 6.3 cu ft
- Loading height: 131.5 W x 55.5 L x 53 H
- Weight: 1,653 lbs
- OPERATING DIMENSIONS (palletized)
- Length 132″ (103″)
- Width 53″ (60″)
- Height 54″ (60″)
Optional Equipment
- 33’ of Ø 35mm hose – Part # 1107528
- 33’ of Ø 50mm hose – Part # 1107533
- Aqua Control Electronic Meter System – Part # 1107209
- Vibrating grate – Part # 1107036
- 164’ remote control – Part # 1107086
- IM25L rotor/stator kit – Part # 1107149
- 60.12 Rotor/stator kit – Part # 1107090
- 50mm to 35mm material hose reducer – Part # 1106178
- Spray gun step 120 – Part # 1107577
- 16’ x 35mm male to 25mm male hose – Part # 1107074
- Shotcrete gun – Part # 1106250
- 5 Function radio remote – Part # 1107001
- Hydraulic power washer – Part # 1107208
- 5’ overhead wand – Part #1107549
- Pintle tow ring – Part # 1107161
